Auto-Ripe® Ethylene Generator

The redesigned Auto-Ripe® Generator was developed in 2021 after a recognized need for a thinner, wall-mounted, vertical storage of Ethy-Gen® II Ripening Concentrate. A better fit in tightly packed ripening rooms, the Auto-Ripe® holds up to 4 liters and alerts to a low Ethy-Gen® II level.

Purchase Today

Newly redesigned.

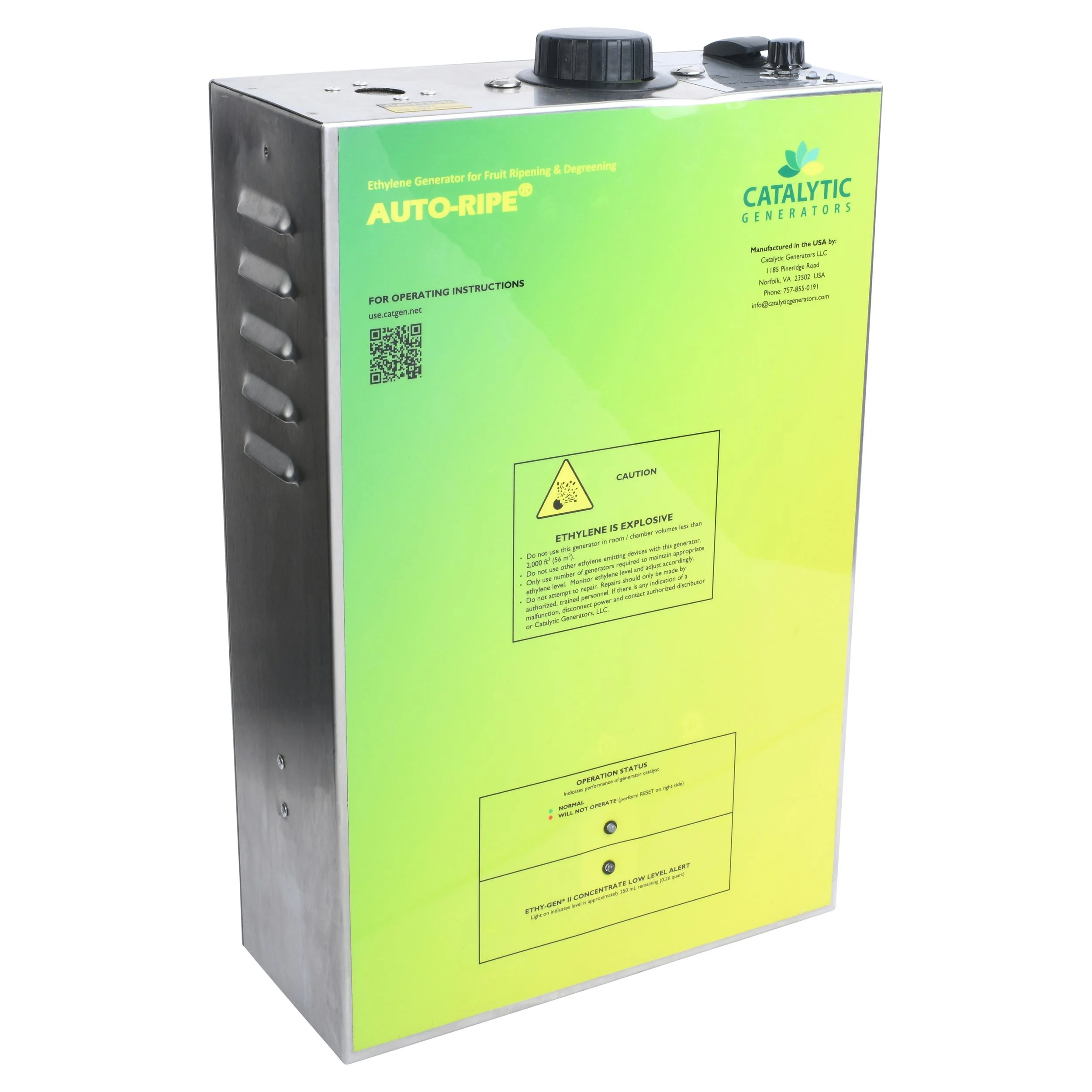

  • Auto-Ripe Slim

    Slim Design

    At only 14.2 cm depth, the Auto-Ripe® is an ideal solution for narrow ripening rooms. Ease your mind as forklifts and other mechanical equipment enter and exit ripening rooms with this slim design.

  • Auto-Ripe Wall-mount

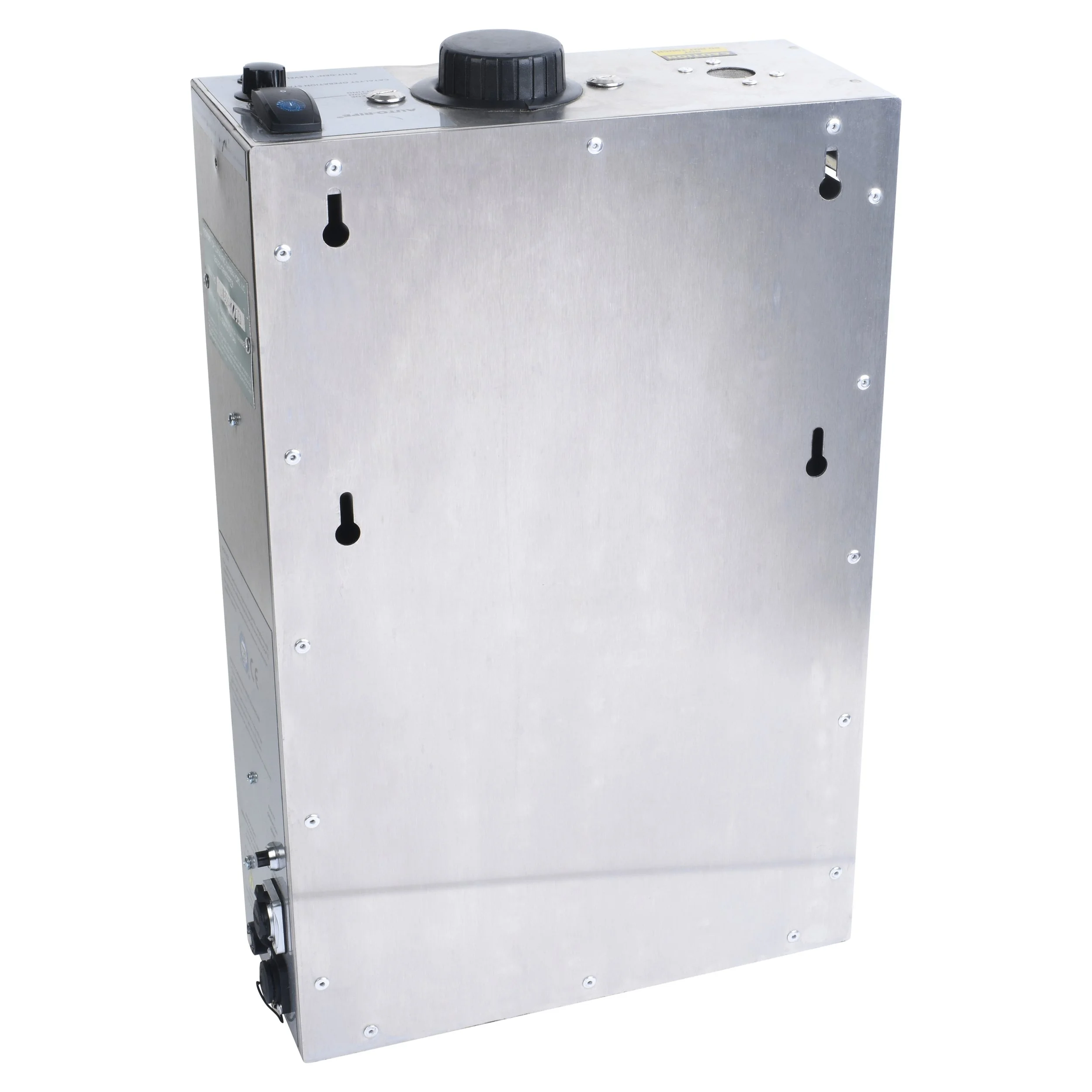

    Wall Mount

    Four keyhole slots are on the backside of the Auto-Ripe® for quick and easy wall-mounting. If floor use is preferable, stands to support the generator are available.

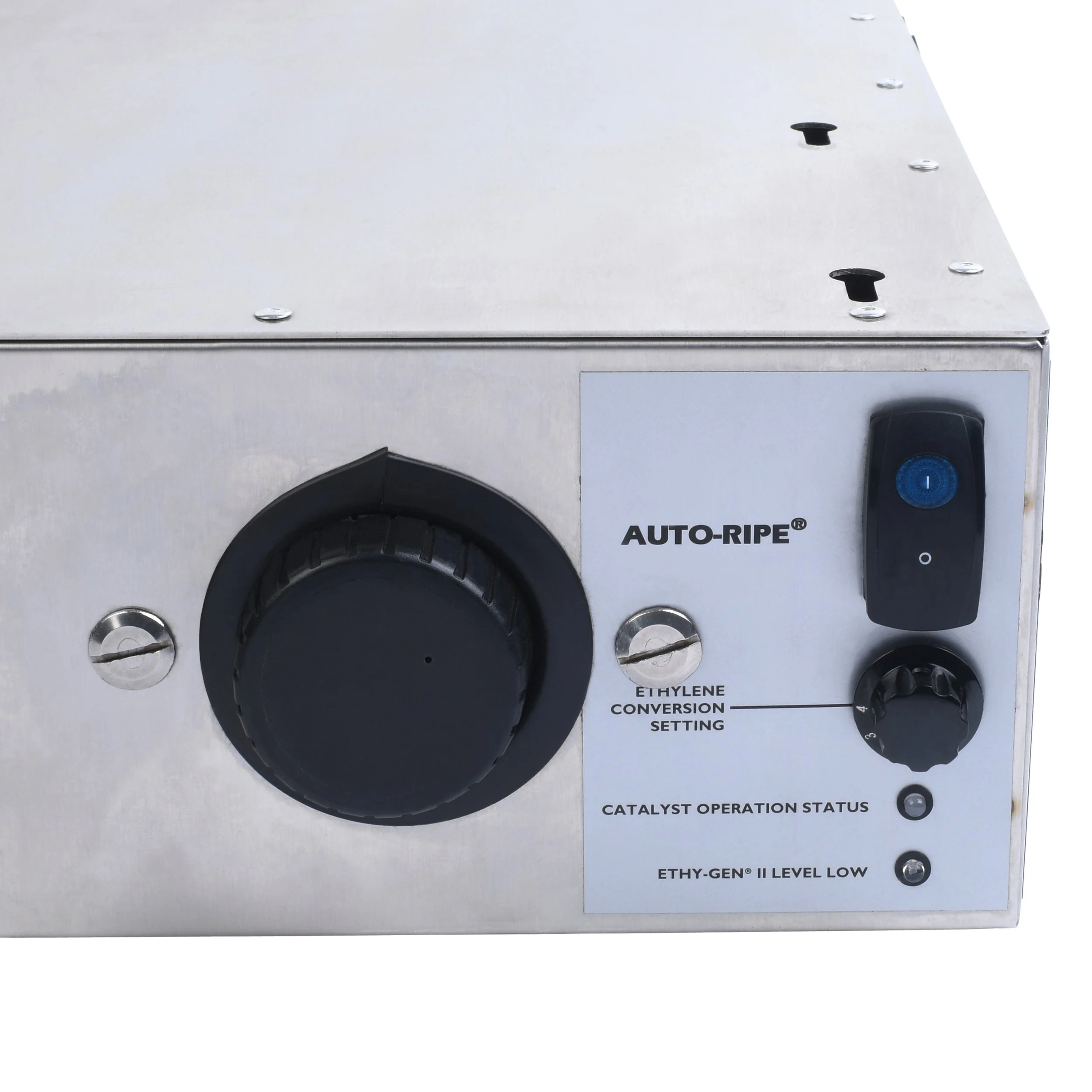

  • Auto-Ripe top

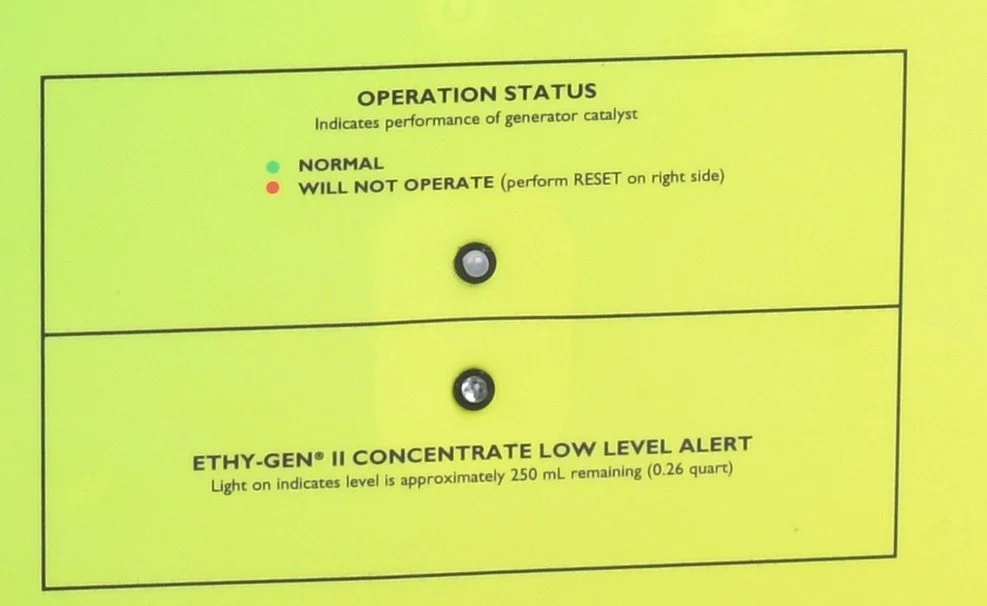

    Level Indication

    Two LED lights turn on when the Ethy-Gen® II reservoir reaches low levels of 250 mL or less. Also, continuous indication of operation status is provided, making it clearly evident of ethylene production.

Auto-Ripe® Details…

  • Produces consistent, non-pressurized and safe ethylene levels for uniform degreening

    No mixture with inert gas is needed as our system is inherently safe

    Easy to make only as much ethylene as needed for the target room, no need to store large quantities of compressed gas on site

    Each bottle of Ethy-Gen® II makes approximately 0.386 m3 of ethylene

    There are no residues as a result of our ethylene application

    Adjustable ethylene output allows for adaptation to any ethylene PPM requirement and any room size

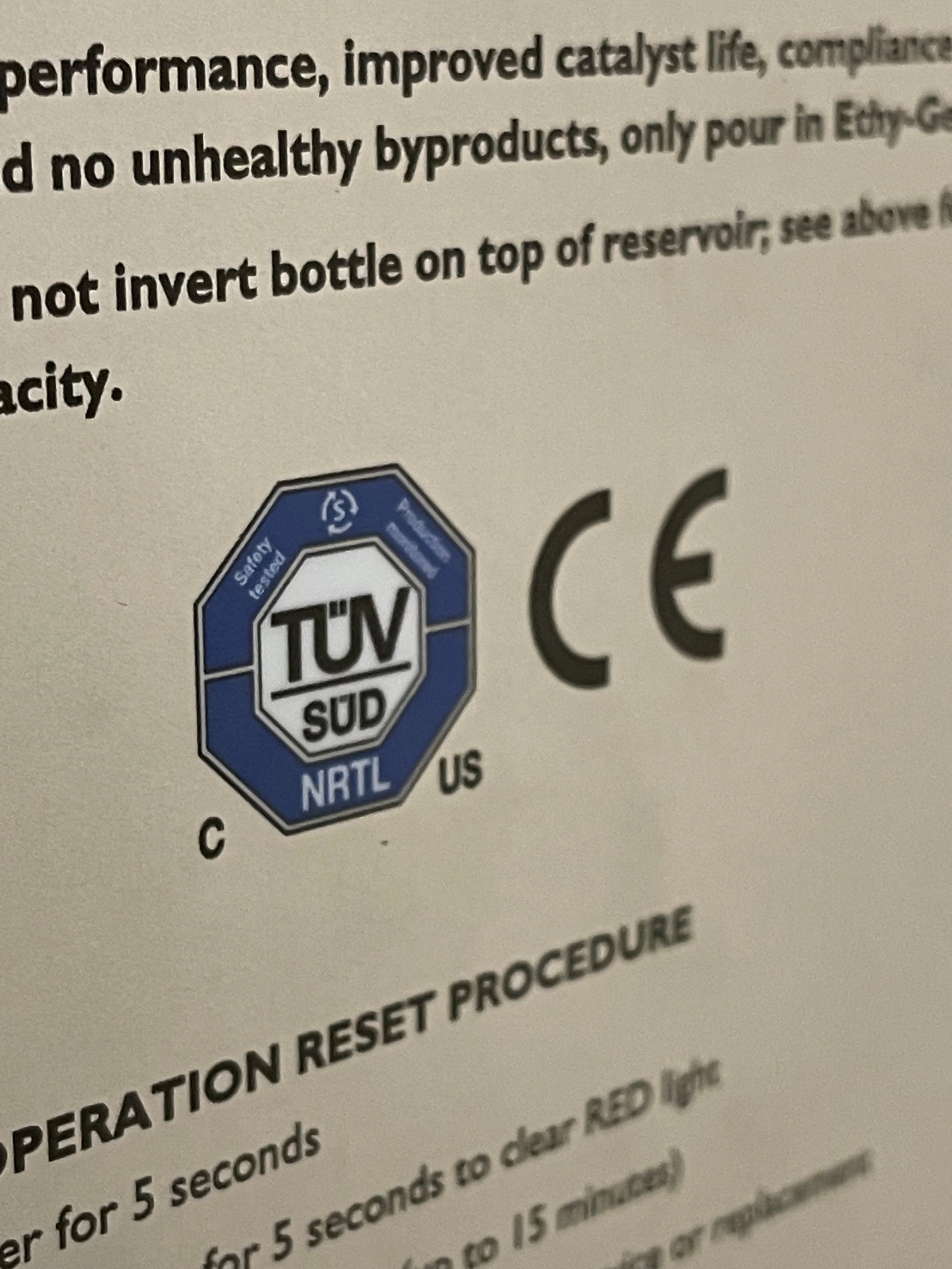

  • TÜV SÜD, Z1A 06 05 26083 001

    73/23/CEE: EC Low Voltage Directive

    89/336/EEC: EC Directive of Electromagnetic Compatibility

  • 230 VAC/0.66 AMP/160 W/50-60 Hz with power plug type AS/NZS 3112 (Other types available upon request )

  • Adjustable Conversion Rate: the amount Ethy-Gen® II that converts to ethylene is a user-selectable rate and varies from 0.5 to 2 litres per 24 hours (additional and custom rates available).

    Tank Volume: Standard 4.0 Litres; 1.0 and 2.5 Litre tanks also available

    Ethylene Output: Approximately 0.386 m3 of ethylene will result from the conversion of one litre of Ethy-Gen® II in a minimum period of 12 hours.

  • Place on wall with four screws using the included template, or request optional floor stand.

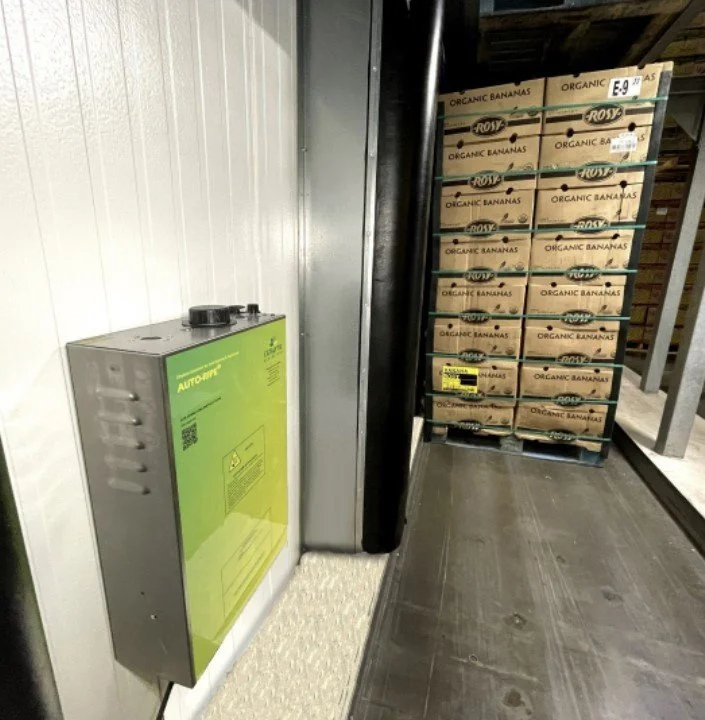

    Location in room is wherever convenient and protected from traffic of pallet jacks and lifts.

  • Our generators can be used for fruit ripening in rooms that have a minimum cubic dimension of 45 cubic metres.

    On the maximum side, the general rule is 285 cubic metres. The actual dimensions depends on several factors, including desired ethylene level and room “tightness” (how well-sealed the room is to prevent air loss).

    For rooms larger than this, additional generators can be used, if needed, to achieve the proper ethylene level. It may be possible to use just one generator for a room that is larger than 285 m3; again, dependent upon how tight the room is. We have some customers that are able to use just one generator in rooms that are 570 m3 and still achieve 150 ppm of ethylene.

    Remember, ethylene is explosive at 27,000 ppm; always use our generators in ripening rooms that are 45 m3 or larger. When using our equipment as directed, explosive levels of ethylene in ripening rooms are not possible.

  • Weight:
    8.16 kg / Shipping 9.07 kg

    Dimensions:
    Height: 57.15 cm
    Depth: 14.2 cm
    Width: 34.93 cm

  • One (1) year warranty included. Extended warranties available.
